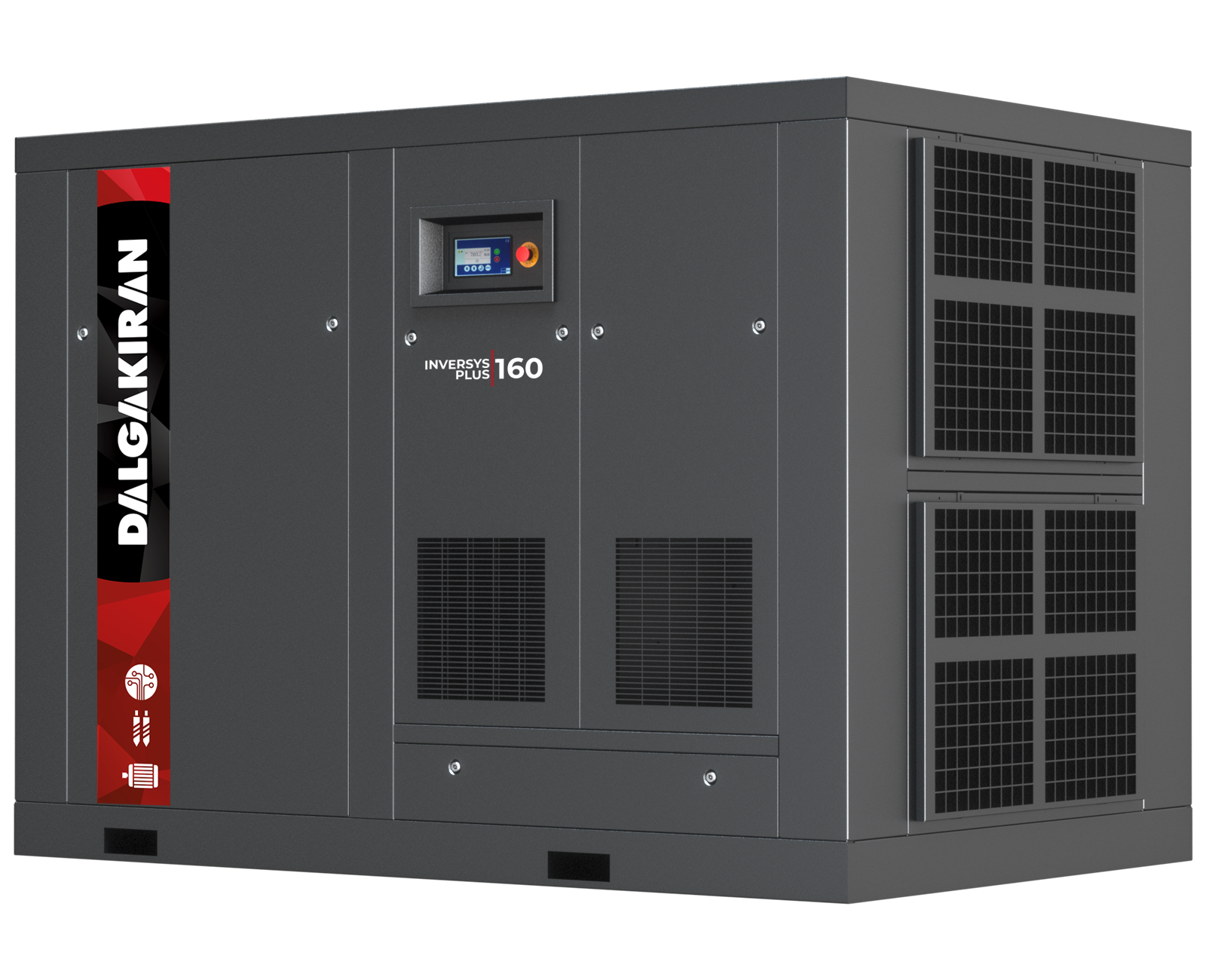

INVERSYS PLUS SERIES

5,5-315 kW 7,5-10-13 bar 0,36-54,10 m³/min

Oil Injected, Direct Coupled, Variable Speed

Rotary Screw Air Compressors

Thanks to its high quality equipment and advanced engineering design, it provides an efficient and flexible use according to your industrial production needs.

Advantages

• Up to 65% energy saving*

• Operation at constant output pressure value

• Wide operating pressure range (5-14 bar)**

• Long component life cycle thanks to soft start

• Protection against the adverse effects of peak currents

• Effective and energy efficient compressed air production even in case of highly variable compressed air requirements

* When compared with compressors without an inverter for applications with variable requirements

** If requested, it is produced specially according to the need.

Main Motor and Drive System

• IE3 efficiency-class electric motor

• Direct coupled (1:1) with the elastic coupling

• Elasting coupling for a maintenance free long-lasting and efficient power transmission system

• Variable-speed starting with frequency converter

• High temperature protection for motor bearings (Inversys 15-315 Plus)

Screw Block

• A durable and specially selected patented screw block that provides high capacity air according to the capacity needs of each model

• New rotor profiles for reduced loss air production

• Next gen bearing design for improved load bearing capabilities

Cooling System

• Temperature controlled axial fan (Inversys 5-22 Plus)

• Optimum working temperature thanks to inverter controlled fans, provides additional energy efficiency (Inversys 30-315 Plus)

Controller

• Internal ModBus communication

• User-friendly on-screen interface

• Without the need for an external main controller, Ability to co-aged work synchronized with Master/Slave for up to 2 compressors in 22 kW and below models,

• Multi-operation capability of up to 5 compressors in 30 kW and above models

• The ability to perform both pressure and temperature PID at the same time with its Dual PID feature (30 kW and above)

5,5-315 kW 7,5-10-13 bar 0,36-54,10 m³/min

TECHNICAL SPECIFICATIONS

Model	Pressure		Capacity*				Motor	Connection	Dimensions [Width x Length x Height] (mm)		Weight (kg)
	Pressure		Capacity*				Motor		Dimensions [Width x Length x Height] (mm)		Weight (kg)
	bar	psi	Minimum m³/min - cfm		Maximum m³/min - cfm		kW/HP		Base Mounted	Tank + Dryer	Base Mounted	Tank + Dryer
INVERSYS 5 PLUS	7,5	110	0,38	13,4	1,03	36	5,5/7,5	G 1/2”	1058 x 650 x 963	1828 x 650 x 1438	235	366
	10	145	0,37	13	0,83	29
	13	190	0,36	12,7	0,64	22,6
INVERSYS 7 PLUS	7,5	110	0,42	14,8	1,4	49,4	7,5/10	G 1/2”	1058 x 650 x 963	1828 x 650 x 1438	273	436
	10	145	0,43	15,1	1,2	42,3
	13	190	0,43	15,1	0,95	33,5
INVERSYS 11 PLUS	7,5	110	0,77	27	1,8	64	11/15	G 3/4”	1200 x 730 x 1050	1911 x 730 x 1708	320	533
	10	145	0,81	29	1,61	57						533
	13	190	0,74	26	1,3	46						590
INVERSYS 15 PLUS	7,5	110	0,79	28	2,85	101	15/20	G 3/4”	1200 x 730 x 1050	1911 x 730 x 1708	420	638
	10	145	0,77	27	2,33	82						638
	13	190	0,99	35	2,07	73						658
INVERSYS 18 PLUS	7,5	110	1,1	39	3,5	124	18,5/25	G 1”	1280 x 860 x 1435	-	500	-
	10	145	1	35	3	106
	13	190	1,1	39	2,6	92
INVERSYS 22 PLUS	7,5	110	1,3	46	4,2	148	22/30	G 1”	1280 x 860 x 1435	-	516	-
	10	145	1,3	46	3,8	134
	13	190	1,2	42	3	106
INVERSYS 30 PLUS	7,5	110	1,2	43	5,3	187	30/40	G 1 1/4”	1605 x 1040 x 1755	-	819	-
	10	145	1,2	43	4,6	162
	13	190	1,2	43	4	141
INVERSYS 37 PLUS	7,5	110	1,3	46	6,8	240	37/50	G 1 1/4”	1605 x 1040 x 1755	-	870	-
	10	145	1,3	46	5,8	205
	13	190	1,3	46	5	177
INVERSYS 45 PLUS	7,5	110	1,3	46	7,6	268	45/60	G 1 1/4”	1605 x 1040 x 1755	-	945	-
	10	145	1,2	42	6,8	240
	13	190	1,2	42	5,9	208
INVERSYS 55 PLUS	7,5	110	2,5	88	9,9	350	55/75	G 1 1/2”	2065 x 1200 x 1810	-	1524	-
	10	145	2,4	85	8,2	290
	13	190	2,6	92	7,4	261
INVERSYS 75 PLUS	7,5	110	2,6	92	12,9	456	75/100	G 1 1/2”	2065 x 1200 x 1810	-	1647	-
	10	145	2,5	88	10,9	385
	13	190	2,5	88	9,6	339
INVERSYS 90 PLUS	7,5	110	6,2	219	16,8	593	90/125	G 2”	2525 x 1440 x 2037	-	2020	-
	10	145	6	212	14,4	509
	13	190	6,2	219	12,3	434
INVERSYS 110 PLUS	7,5	110	6,6	233	20,1	710	110/150	G 2”	2525 x 1440 x 2037	-	2380	-
	10	145	7,1	250	17,3	611
	13	190	7	247	15	530
INVERSYS 132 PLUS	7,5	110	6,9	244	24,3	858	132/180	G 2 1/2”	2775 x 1820 x 2000	-	2555	-
	10	145	6,8	240	20,3	717
	13	190	9,7	343	18,1	639
INVERSYS 160 PLUS	7,5	110	6,8	240	28,2	996	160/220	G 2 1/2”	2775 x 1820 x 2000	-	2760	-
	10	145	7,1	251	24,6	869
	13	190	8,5	300	21,7	766
INVERSYS 200 PLUS	7,5	110	14	494	37,5	1324	200/270	DN 80	3290 x 2285 x 2455	-	4460	-
	10	145	13,9	491	32,3	1141
	13	190	13,8	487	28,8	1017
INVERSYS 250 PLUS	7,5	110	13,6	480	45,2	1596	250/340	DN 100	3315 x 2285 x 2455	-	5600	-
	10	145	13,5	477	38,5	1360
	13	190	13,5	477	33,5	1183
INVERSYS 315 PLUS	7,5	110	13,2	466	54,1	1911	315/430	DN 100	3315 x 2285 x 2455	-	6000	-
	10	145	13,2	466	44,3	1564
	13	190	12,9	456	38	1342

- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Dalgakıran reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
