DKC SERIES

5,5-7,5 kW 8 bar 1013-1657 l/min

Oil Injected, Single & Double Stage

Reciprocating Air Compressors

Robust, reliable and long-lasting compressors offer ideal air solutions for small industrial businesses and workshops.

Advantages

• Reliable operation

• High-quality components for long service life.

General Features

• Suitable for operation even in the most challenging ambient conditions

• Easy to use and low noise levels

• Reliable and efficient compressed air production

Main Motor and Safety System

• IE3 efficiency-class electric motor

• Safe operation with pressure switch, check valve and safety valve

• Belt-pulley guard

• Manometer

• Ready-to-run electrical mechanism

Compressor Block

• Cast cylinder body

• Cast iron cylinder heads with cooling channels

• Special aluminium alloy pistons and connecting rod

• Cast pulley for fan-type efficient cooling

• Air intake filter

• Splash lubrication

• Oil level gauge

• Factory-filled oil

• Star/delta connectors

• External control panel (optional)

5,5-7,5 kW 8 bar 1013-1657 l/min

TECHNICAL SPECIFICATIONS

Model	Working Pressure		Piston Displacement		Motor	Connection	Dimensions (mm)			Weight	Air Receiver
Model	bar	psi	l/min	cfm	kW/HP	Connection	Width	Length	Height	kg	l
DKC 500	8	115	1013	35,8	5,5/7,5	3/4”	1934	642	1308	308	500

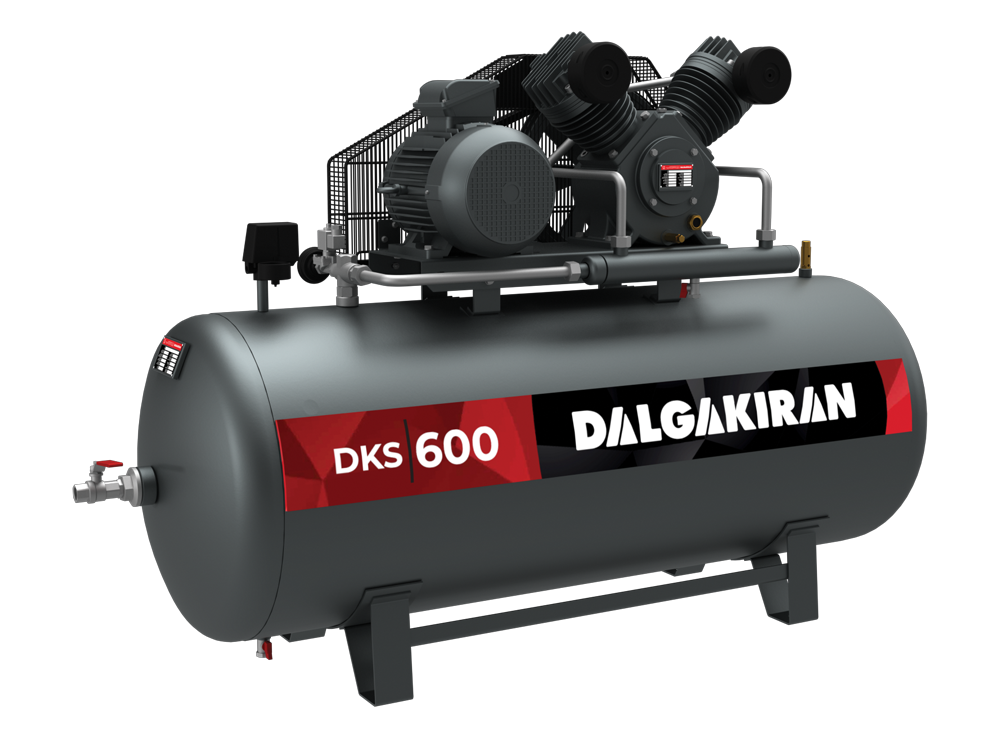

DKS 600	8	115	1657	58,5	7,5/10	3/4”	1926	668	1413	390	500

- Unit performances measured in reference conditions which are 1 bar absolute air pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Dalgakıran reserves its rights to make changes in its products and specifications without prior notice.
