    G MSS Compressed Air Sterile Filters

    g-mss-compressed-air-sterile-filters

     Advantages

    • Specially designed for medical compressed air plants

    • Partical removal down to 0.01 micron

    • Suitable for steam sterilisation in an autoclave

    TECHNICAL  SPECIFICATIONS

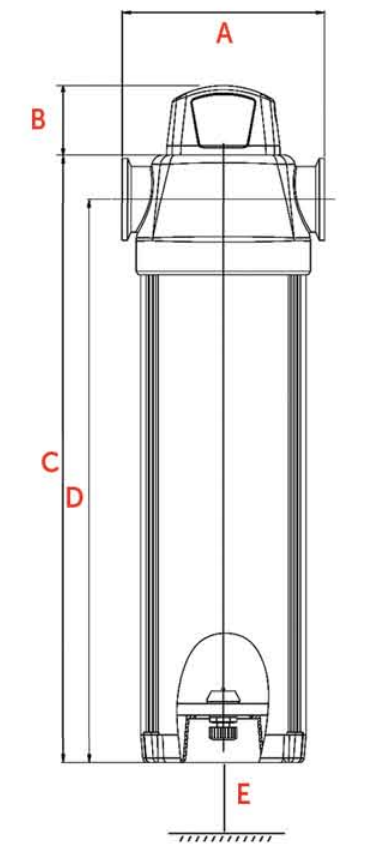

    Model Max. Pressure Capacity Connection Dimensions (mm)
    bar psi m³/min cfm A B C D E
    G 20 MSS  16 232 0,33 12 G 1/4” 72 19 193 100 22
    G 25 MSS 16 232 0,42 15 G 1/4” 72 19 193 100 22
    G 40 MSS 16 232 0,67 24 G 3/8” 96 20 237 110 22
    G 50 MSS 16 232 0,83 30 G 3/8” 96 20 237 110 22
    G 100 MSS 16 232 1,67 59 G 1/2” 96 20 237 150 22
    G 150 MSS 16 232 2,5 88 G 3/4” 117 34 375 190 56
    G 200 MSS 16 232 3,33 118 G 3/4” 117 34 375 250 56
    G 250 MSS 16 232 4,17 147 G 1” 117 34 465 300 56
    G 300 MSS 16 232 5 177 G1 1/4” 117 34 465 350 56
    G 500 MSS 16 232 8,33 294 G1 1/4” 117 34 530 380 56
    G 600 MSS 16 232 10 353 G1 1/2” 117 34 530 425 56
    G 851 MSS 16 232 14,2 501 G 2” 170 64 722 480 56
    G 1210 MSS 16 232 20,2 712 G 2” 170 64 722 550 56
    G 1520 MSS 16 232 25,3 895 G2 1/2” 235 72 760 430 56
    G 1820 MSS 16 232 30,3 1071 G 3” 235 72 760 550 56
    G 2220 MSS 16 232 37 1307 G 3” 235 72 760 600 56
