TIDY LASER


 11-37 kW  14,5-16-20 bar  0,55-4,58 m³/min


Oil Injected, Belt Driven, Fixed Speed

High Pressure Rotary Screw Air Compressors

 Advantages

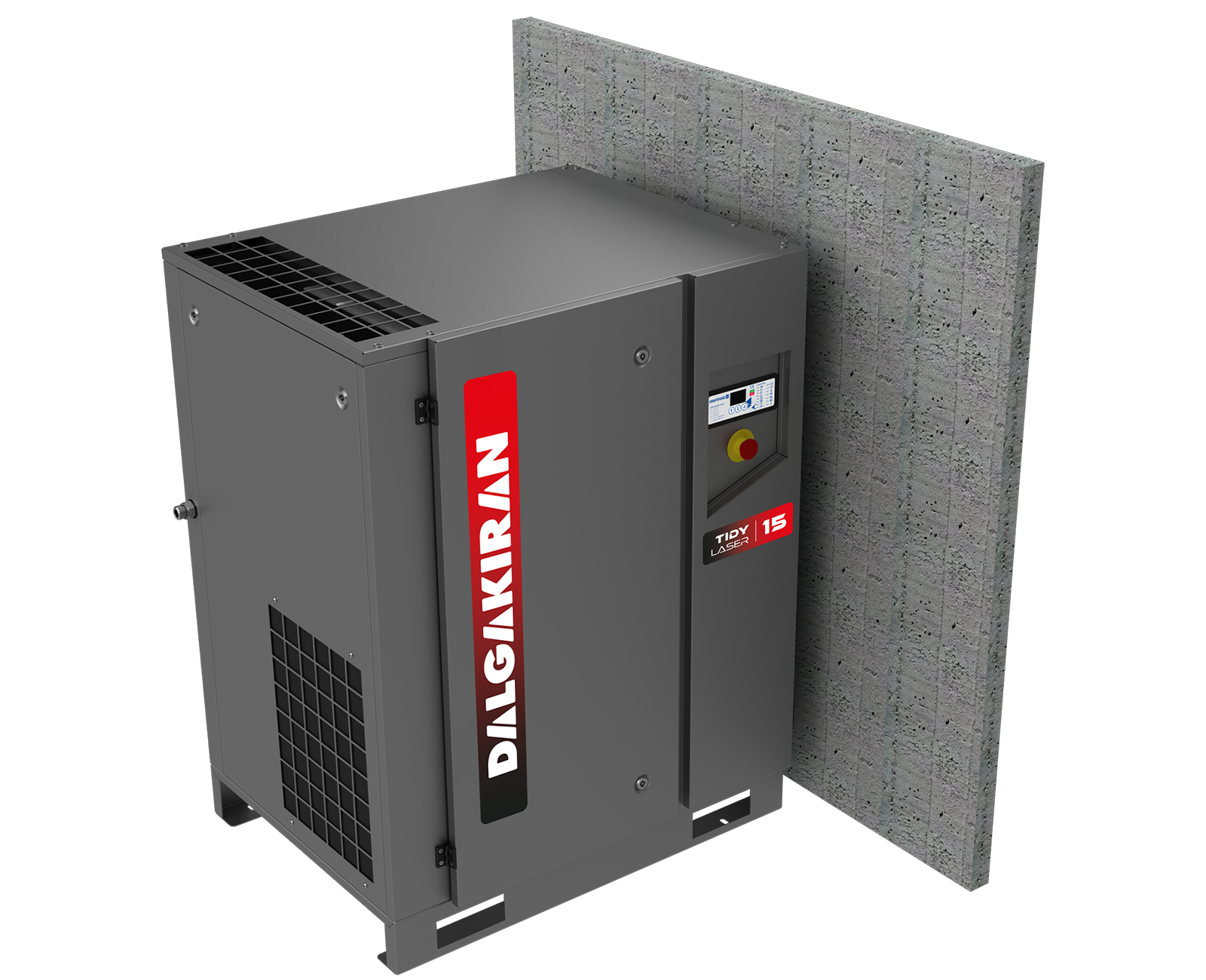

• Blind cover allows you to place it up against the wall. Convenient placement makes for easy servicing, maintenance, and access. (22 kW and above)

• Optimized intake chamber and insulated cold air intake increase energy efficiency. (30 kW and above)


 General Features

• Next gen screw block and motor

• Electronic control

• Easy installation and rapid commissioning thanks to its compact design.

• Operating pressure up to 20 bar

• Dryer & tank mounted option (2,2-22 kW)

tidy-laser
tidy-laser

 Screw Block

• Durable screw block provides high-capacity air and is specially selected for each model’s capacity requirement

• Operated in high ambient temperatures and offers superior reliability

• Air production with less loss thanks to new rotor profiles

• Next gen bearing design which increased load-bearing capacity

• Low maintenance and replacement costs

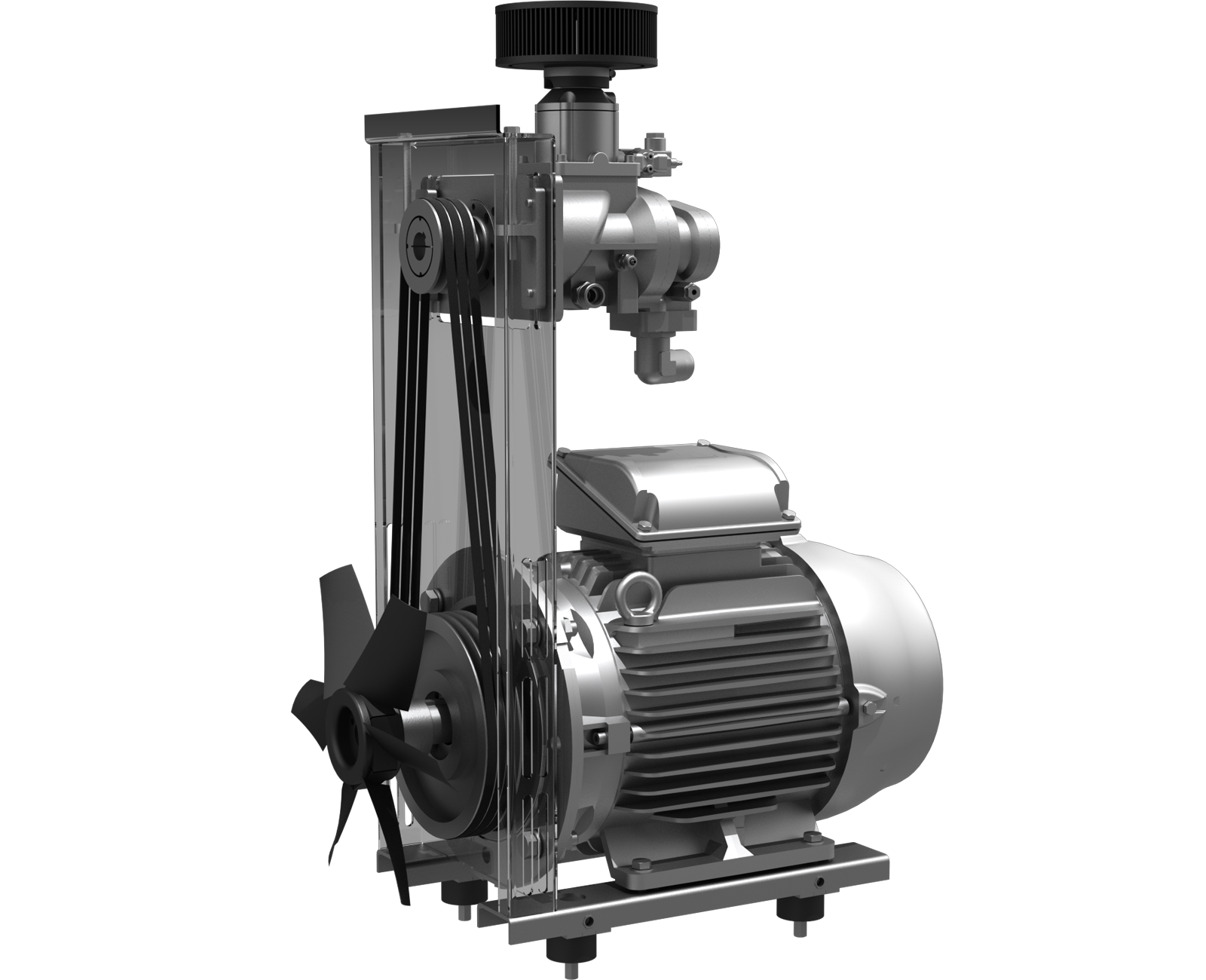

 Main Motor and Drive System

• IE3 efficiency-class electric motor

• Star/delta motor starter

• Belt-pulley drive system

• Easy-to-use belt tensioner

• Pulley bushing for easy servicing

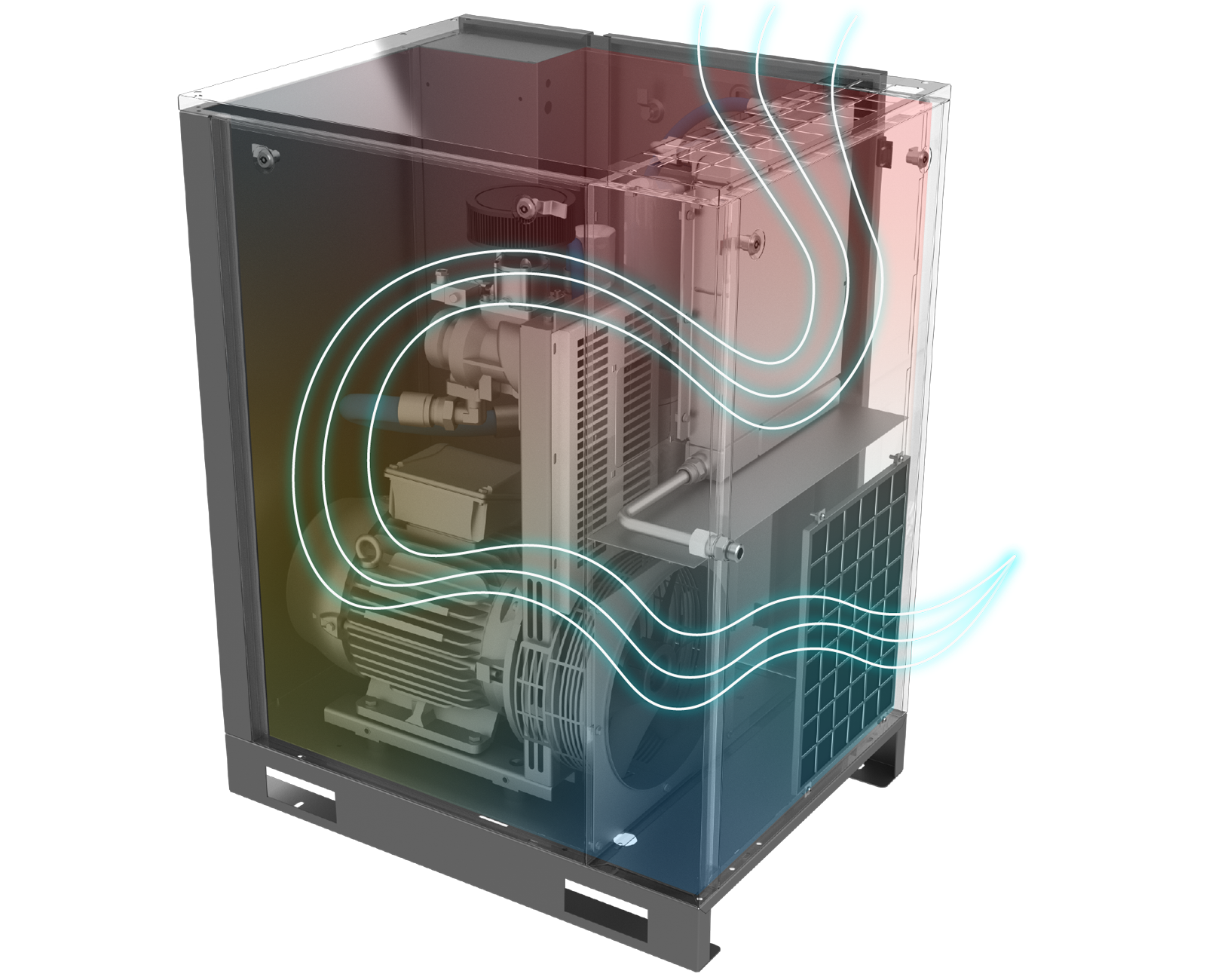

 Cooling System

• Minimum footprint with quiet and effective axial fan coupled directly to the main motor (22 kW and below)

• Temperature-controlled additional axial fan (30 kW vand above)

• High-pressure-resistant cooler


 Oil Separator

• Longer lasting separators keep maintenance costs down

• Effective separator elements keep the amount of oil in the outlet air low (1-3 mg/m³) for highquality compressed air

• Spin-on separator: easy to replace, assemble, and disassemble

tidy-laser
tidy-laser

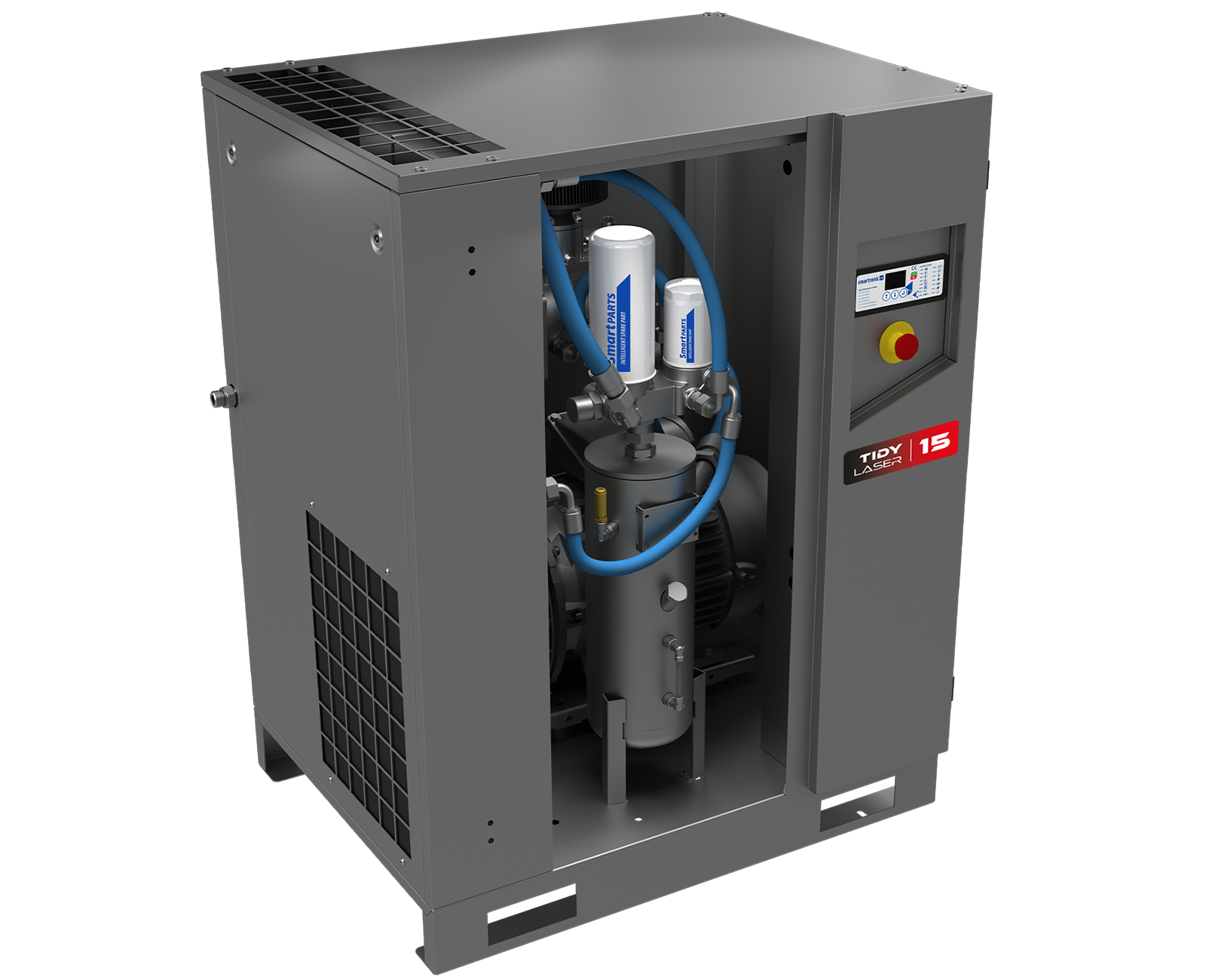

 Air Filter

• Two-stage filtration (initial filtration/precision filtration) (18 kW and above)

• 99.9% efficiency in particle separation down to 3 microns

• Low pressure loss

• Easy maintenance and long service life

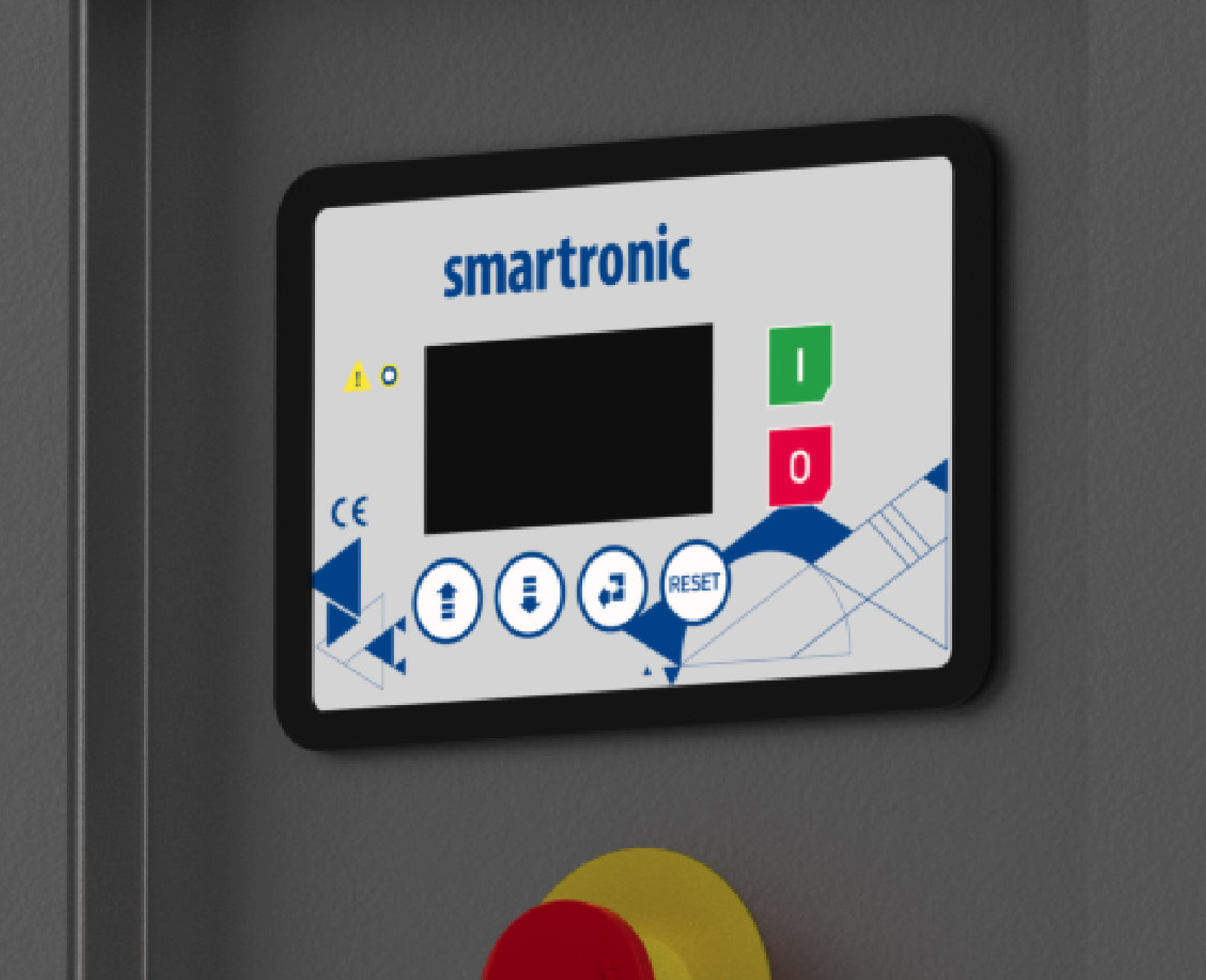

 Controller

• Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors

• Internal ModBus communication

• User-friendly on-screen interface

• Alarm log records last 20 alarms

• Maintenance warnings and log records

tidy-laser

 11-37 kW  14,5-16-20 bar  0,55-4,58 m³/min

TECHNICAL  SPECIFICATIONS


Model Pressure Capacity* Motor Connection Dimensions
[Length x Width x Height] (mm)		 Weight [kg] Air Receiver
bar psi m³/min cfm kW/HP Base Tank + Dryer Base Tank + Dryer
TIDY LASER 15 14,5 210 0,99 35 11/15 G3/4" 962 x 732 x 1200 1880 x 732 x 1700 295 470 (14,5-16 bar)
495 (20 bar)		 250L
16 232 0,79 27,9
20 290 0,55 19,4
TIDY LASER 20 14,5 210 1,48 52,3 15/20 G3/4" 962 x 732 x 1200 1880 x 732 x 1700 315 490 (14,5-16 bar)
515 (20 bar)		 250L
16 232 1,38 48,7
20 290 1,02 36
TIDY LASER 25 14,5 210 1,76 62,2 18.5/25 G3/4" 1039 x 948 x 1462 2135 x 1200 x 2010 425 835 500L
(14,5-16 bar) -
2x250L (20 bar)
16 232 1,63 57,6
20 290 1,17 41,3
TIDY LASER 30 14,5 210 2,31 81,6 22/30 G3/4" 1039 x 948 x 1462 2135 x 1200 x 2010 465 900 500L
(14,5-16 bar) -
2x250L (20 bar)
16 232 2,15 76
20 290 1,66 59
TIDY LASER 40 14,5 210 3,51 124 30/40 G1 1/4" 1135 x 1035 x 1600 - 665 - -
16 232 3,22 114
20 290 2,51 89
TIDY LASER 50 14,5 210 4,58 162 37/50 G1 1/4" 1135 x 1035 x 1600 - 725 - -
16 232 4,23 149
20 290 3,34 118

- Unit performances measured in reference conditions which are 1 bar absolute air pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Dalgakıran reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex C standard.
