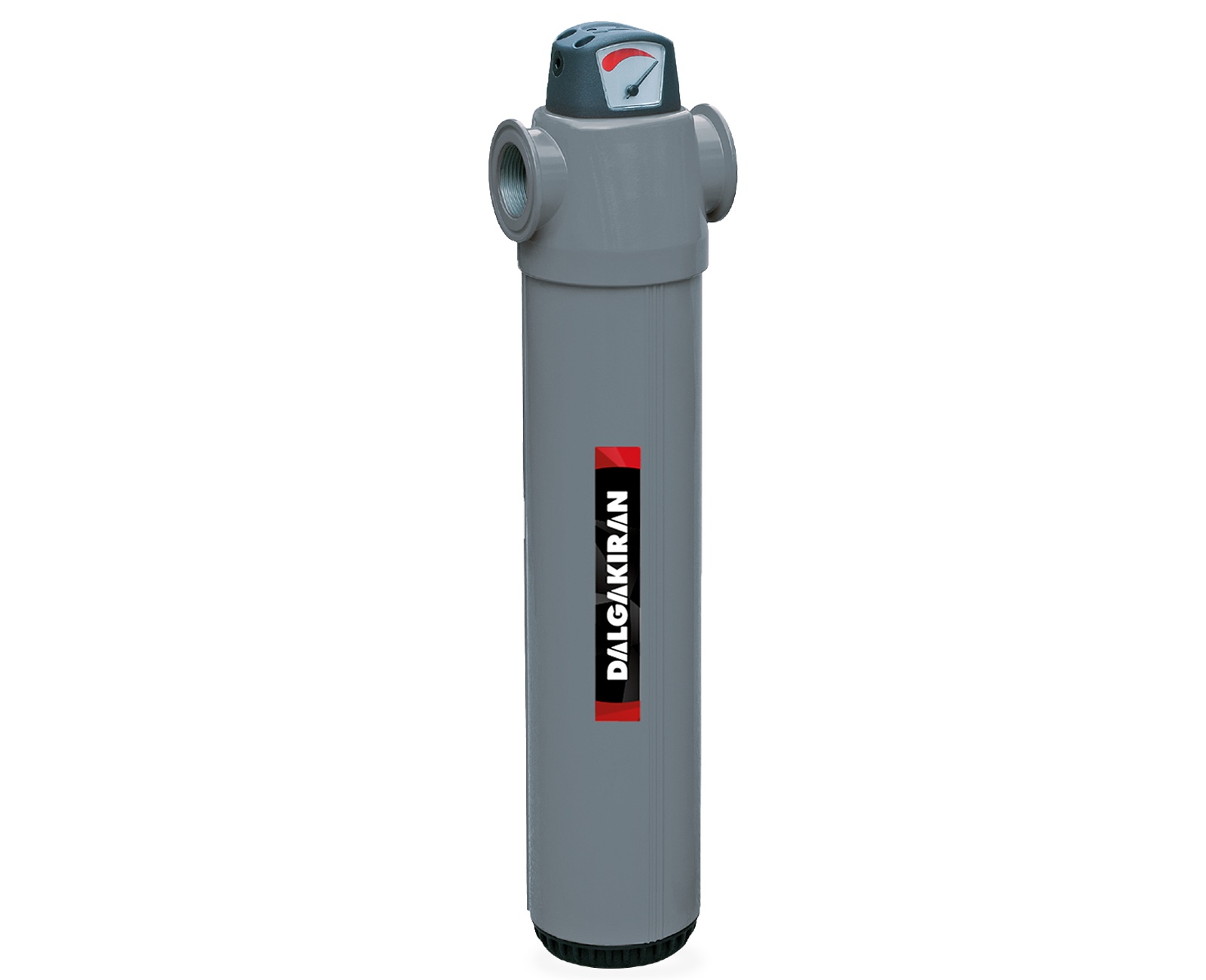

    UP Ultra Particulate Compressed Airline Filters [NEW]

    up-ultra-particulate-compressed-airline-filters-new


     Advantages

    • Class 1 air quality in accordance with ISO 8573

    • Low maintenance costs, long service life

    • High dirt-holding capacity

    • Energy-efficient operation

    • Maximum protection in critical applications


    Offering Class 1 particle filtration according to the ISO 8573 standard, ultra-particulate filters improve final product quality and protect worker health in critical processes such as laser cutting.

    Dalgakıran Kompresör compressed air filters are developed to offer maximum performance and reliability in industrial applications. It is user friendly with low pressure loss, high filtration efficiency and different connection options.

    TECHNICAL  SPECIFICATIONS


    Model Maximum Operating Pressure Recommended Flow Rate
    @7barg    		 Inlet-Outlet Size
    bar psi m³/h cfm
    UP-20 20 290 20 11,8 1/4" , 1/2"
    UP-40 20 290 40 14,7 1/4" , 3/8" , 1/2"
    UP-25 20 290 25 23,5 1/4" , 3/8" , 1/2"
    UP-50 20 290 50 29,4 1/4" , 3/8" , 1/2"
    UP-100 20 290 100 58,9 3/8" , 1/2"
    UP-150 20 290 150 88,3 1/2" , 3/4" , 1"
    UP-200 20 290 200 117 3/4" , 1"
    UP-250 20 290 250 147 3/4" , 1"
    UP-300 20 290 300 177 1" , 1 1/4" , 1 1/2"
    UP-500 20 290 500 294 1 1/4" , 1 1/2"
    UP-600 20 290 600 353 1 1/4" , 1 1/2"
    UP-851 20 290 851 501 1 1/4" , 1 1/2" , 2"
    UP-1210 20 290 1210 712 2"
    UP-1520 20 290 1520 895 2 1/2" , 3"
    UP-1820 20 290 1820 1071 3"
    UP-2220 20 290 2220 1307 3"
    UP-2620 20 290 2620 1542 3"
